Pellet boilers are a convenient and environmentally friendly solution. They are very efficient in operation and, just as importantly, energy efficient. As a result, the investment in a new central heating boiler pays for itself quickly. The form in which pellets are purchased is also convenient. It is available in large bags, and is packaged in 15 kg. The device is equipped with a boiler exchanger made of certified boiler steel, a hopper with the possibility of installation on two sides, a door prepared for installation on two sides as a standard, a set for cleaning the boiler exchanger, and a system for automatic cleaning of the pellet burner, which reduces handling to a minimum. There is a 5-year warranty on the tightness of the exchanger.
Pellet boiler

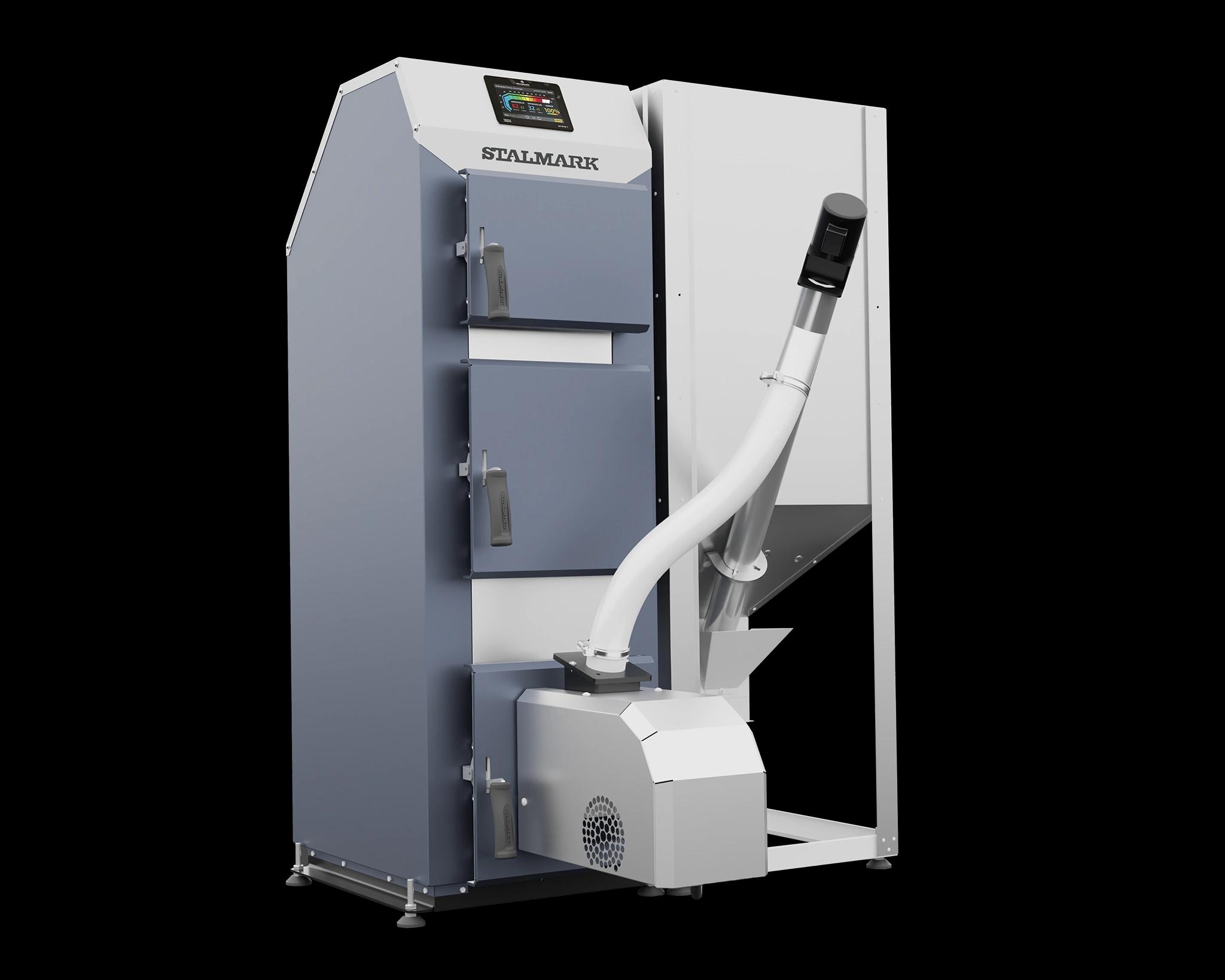

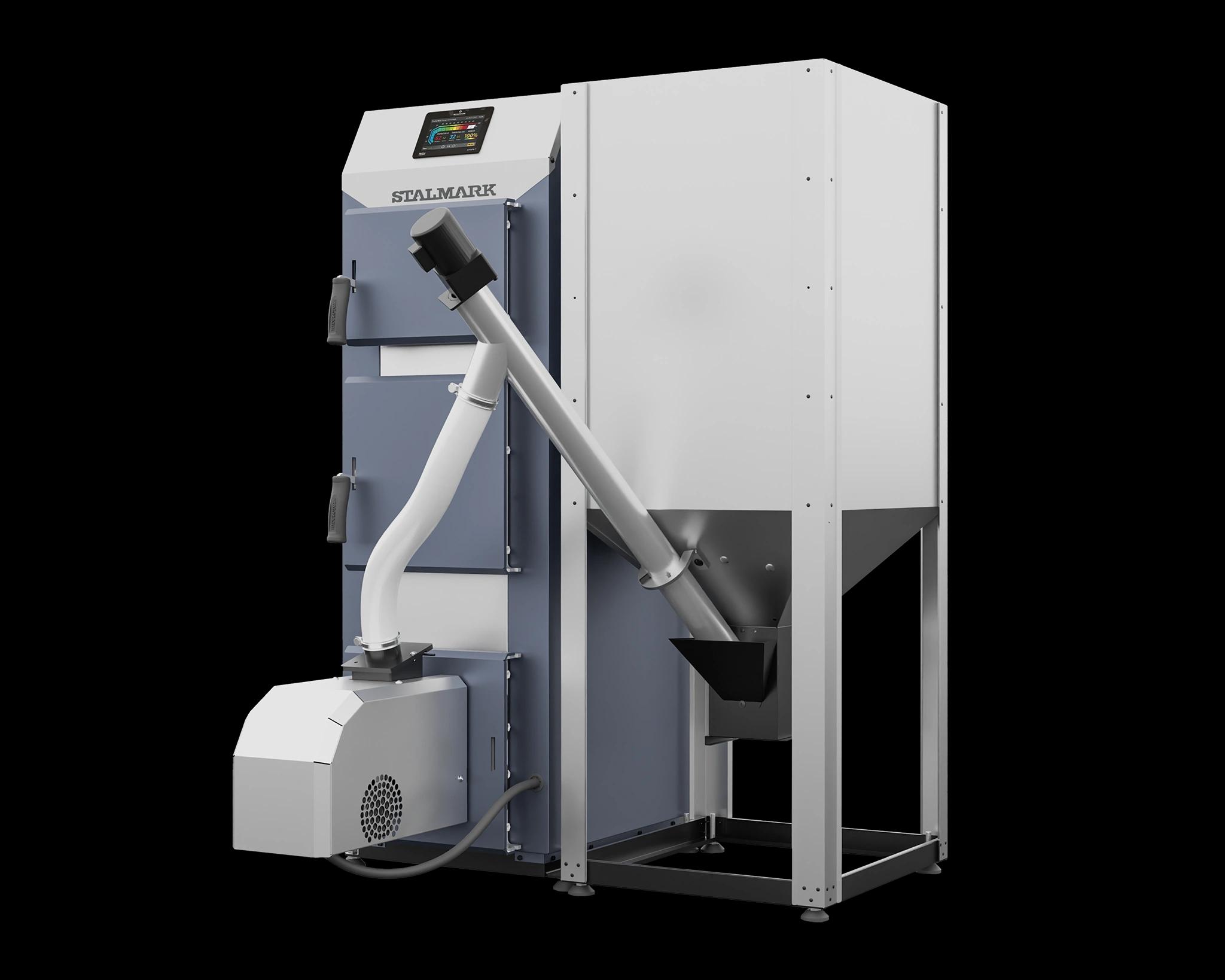

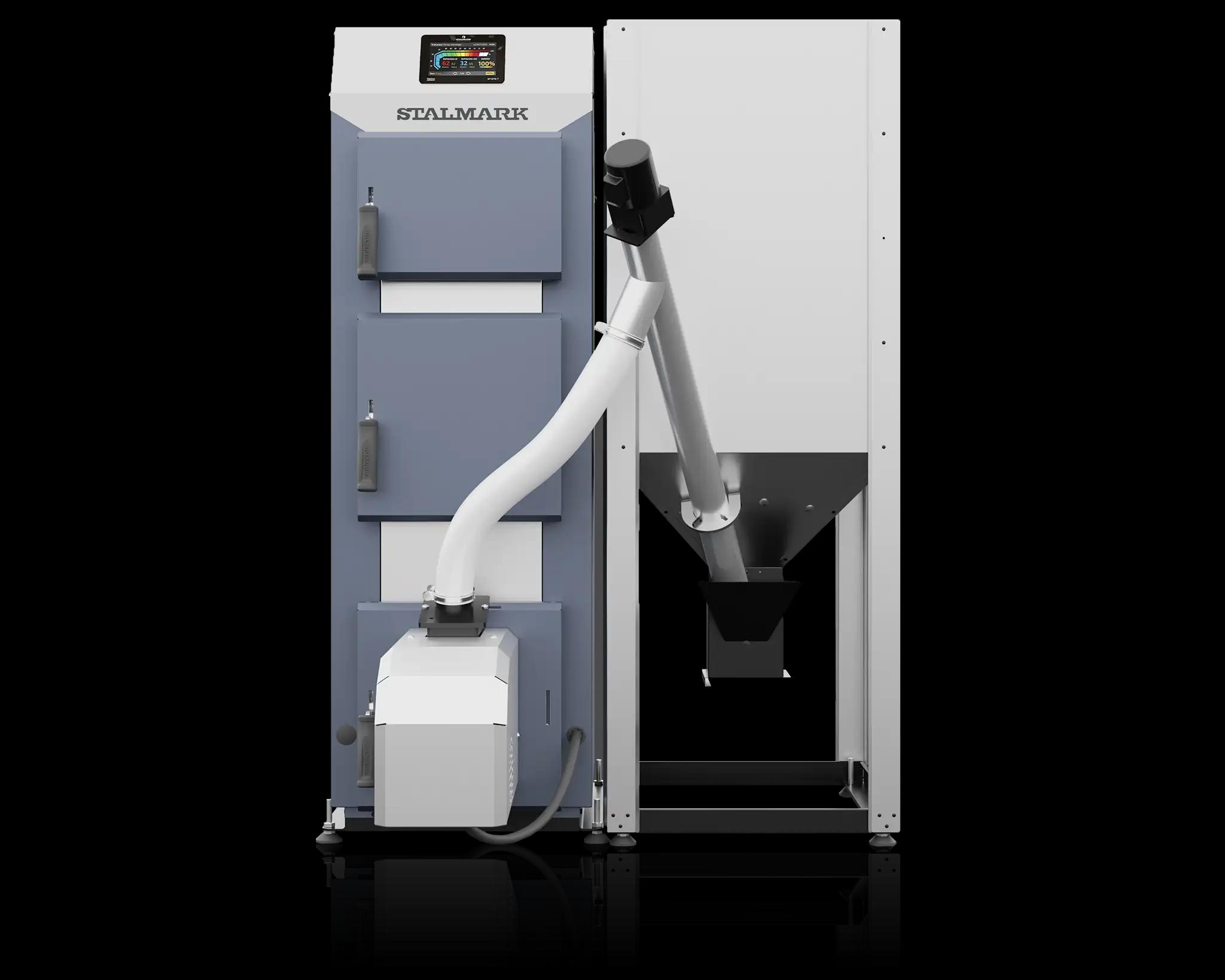

Pellet Vegas II
Eco-friendly power
The Pellet Vegas II is a boiler designed for buildings with a floor area of 60 to 1000 m2. The proven design of the pellet boiler makes burning biomass in the form of wood pellets comfortable, convenient - and, above all, ecological. The fuel tank, depending on the power of the device, has a capacity of 125 to 800 L. It is prepared for installation on the left or right side of the device. The Pellet Vegas boiler uses a touchscreen controller with intuitive parameter settings. The controller on the boiler supports four pumps and one mixing valve for boilers of 45 kW - 80 kW, and four pumps and two mixing valves for boilers of 10 kW - 35 kW. The device is ecodesign certified, confirmed by relevant documents. The electronics can be expanded to control the boiler via the Internet or connect a room controller.
The boiler has a dust emission of less than 20 mg/m3 of flue gas, thanks to which the boiler can receive the highest possible subsidy under the "Clean Air" program.
Pellet Vegas II
Advantages of the boiler
- Warranty
- for the tightness of the exchanger - 60 months
- Automatic
- cleaning the pellet burner
- Set
- for cleaning the boiler exchanger
- Exchanger
- boiler made of approved 6 mm boiler steel
- Resource
- with the possibility of mounting on two sides
- Doors
- Prepared for mounting on two sides as standard
- Mode of operation
- Choice of automatic or manual
Characteristics
Type of boiler: with feeder
Reservoir: 10 kW - 125L, 15 kW - 200L, 20 kW - 200L, 25kW - 300L, 30 kW - 300L, 35 kW - 300L, 45 kW - 630L, 60 kW - 630L, 80 kW - 900L
Power available: 10 kW, 15 kW, 20 kW, 25 kW, 30 kW, 35 kW, 45 kW, 60 kW, 80kW
5 emission class: 10 kW, 15 kW, 20 kW, 25 kW, 30 kW, 35 kW, 45 kW, 60 kW, 80kW
Reduced dust emissions of less than 20mg: 10 kW, 15 kW, 20 kW, 25 kW, 30 kW, 35 kW, 45 kW, 60 kW, 80kW
Ecodesign: 10 kW, 15 kW, 20 kW, 25 kW, 30 kW, 35 kW, 45 kW, 60 kW, 80kW
Fuel Type: wood pellets 6 - 8 mm
Energy efficiency: A+
Controller: ST 978T
Guarantee: 5 years for exchanger tightness
Standard equipment:
- ST 978T controller supporting 5 pumps, 2 mixing valve actuators and 2 room controllers
- self-cleaning burner
- igniter
- external sensor
Equipment additionally paid:
- WIFI RS module
- room controller ST 281
- control of second mixing valve
Boiler data
Pellet Vegas II
BOILER POWER [kW] | BOILER HEATING AREA [m2] | MAX. HEATING AREA [m2] |
---|---|---|
15 | 1.57 | up to 185 |
20 | 2.18 | up to 250 |
25 | 2.40 | up to 310 |
30 | 3.37 | up to 375 |
35 | 3.73 | up to 435 |
45 | 4.66 | up to 560 |
60 | 5.85 | up to 750 |
80 | 7.80 | up to 1000 |
Pellet Vegas II
Pellet Vegas is a pellet boiler designed for small and large buildings. The boiler looks aesthetically pleasing and is easy to operate. We provided it with a very convenient and easy to use electronic controller from TECH. It has a color touchscreen control panel, which allows to operate independently four heating systems and one mixing valve for boilers of 45 kW - 80 kW, and four heating systems and two mixing valves for boilers of 10 kW - 35 kW. The boiler can be operated using a cell phone after purchasing the WIFI RS module, which allows even more convenient operation of the device designed for automatic pellet combustion.
