The boiler was designed with environmental protection in mind - its dust emissions remain below 20mg/m3 of flue gas, allowing it to receive the highest subsidy under the Clean Air Program. In addition, the larger capacity of the boiler acts as a heat buffer, supporting its efficiency and reducing heat losses during storage and transmission of thermal energy. It is also worth noting that the boiler complies with Ecodesign standards, confirming its sustainable nature and high energy efficiency. The ST 978T controller provides intuitive operation and monitoring of the boiler's operation, which translates into user comfort.

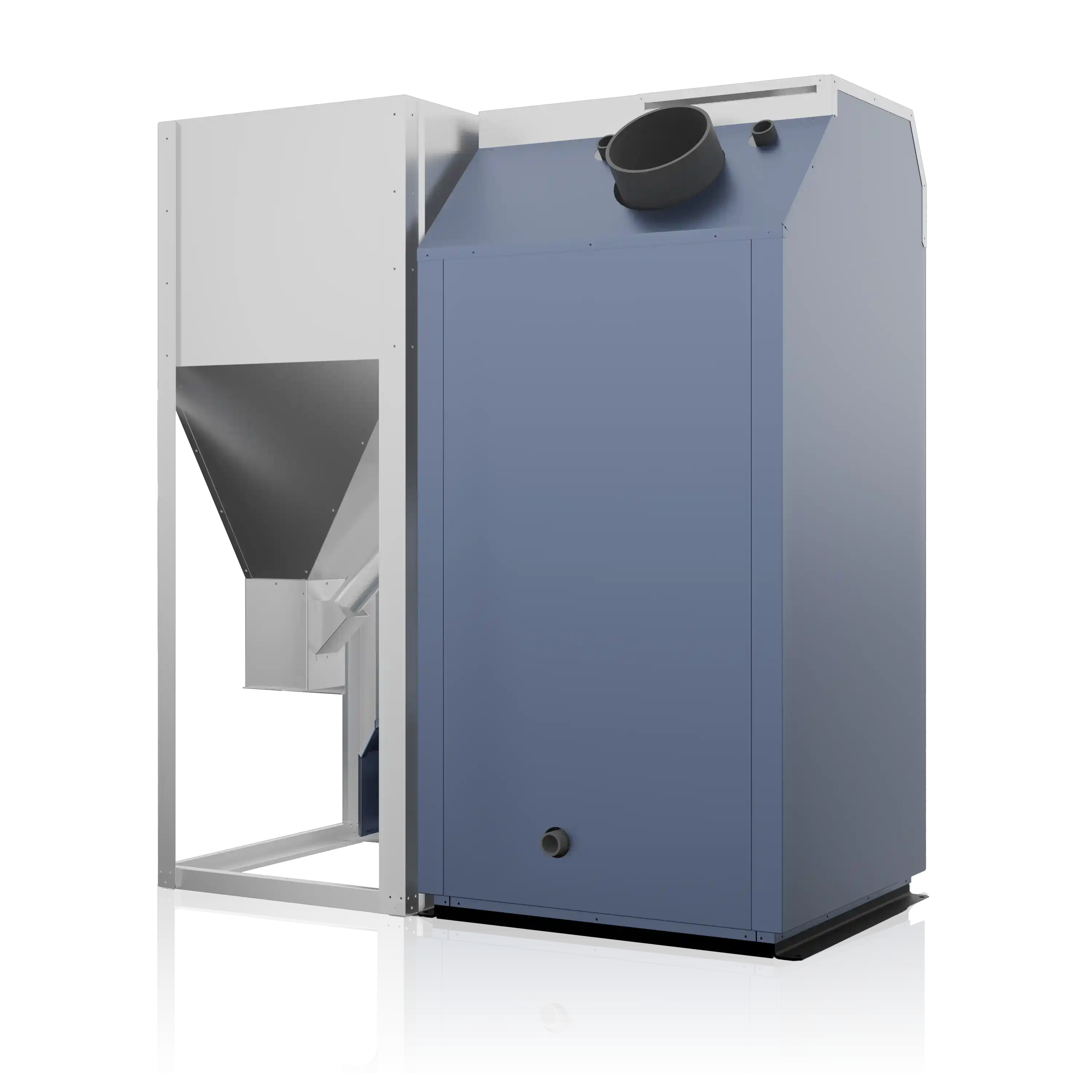

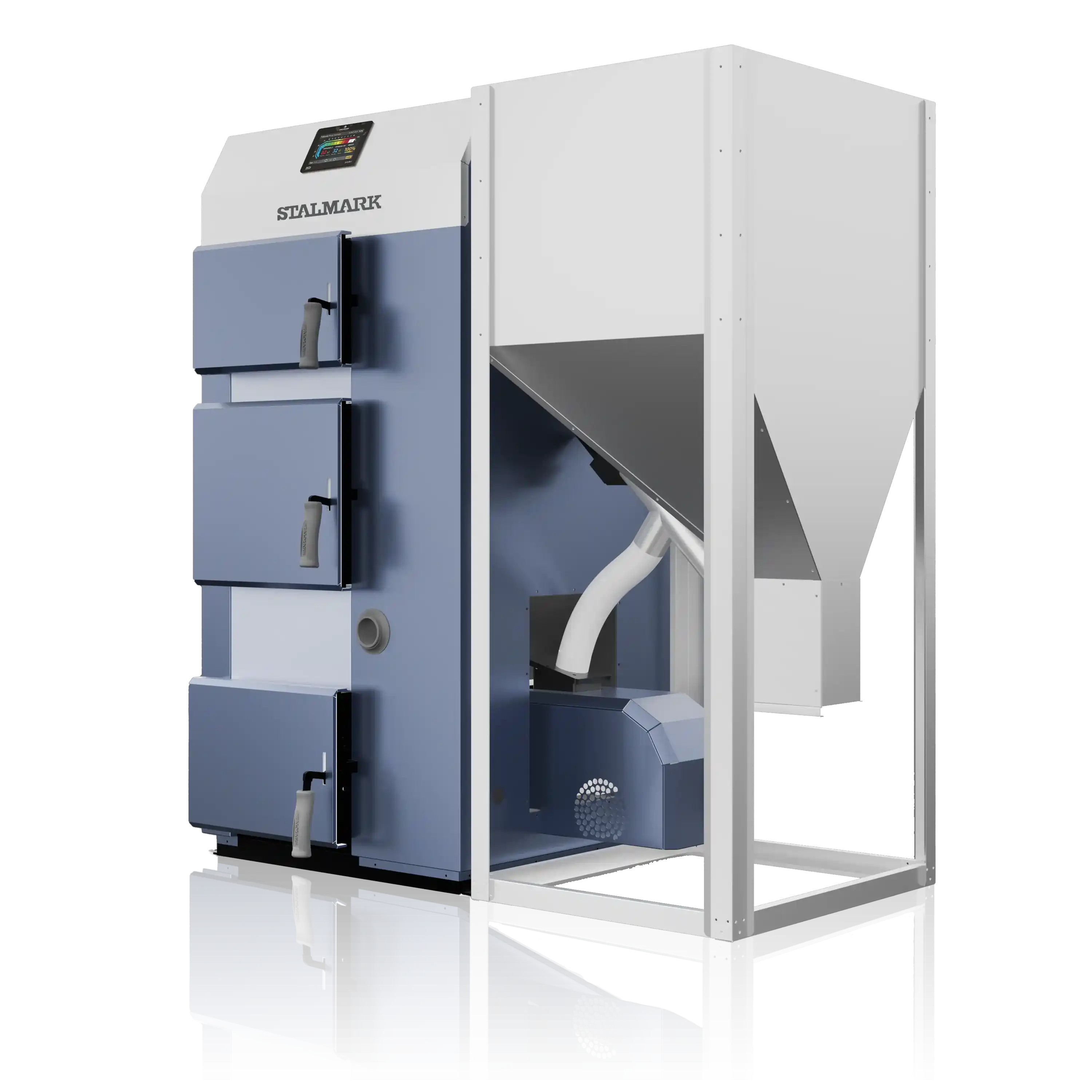

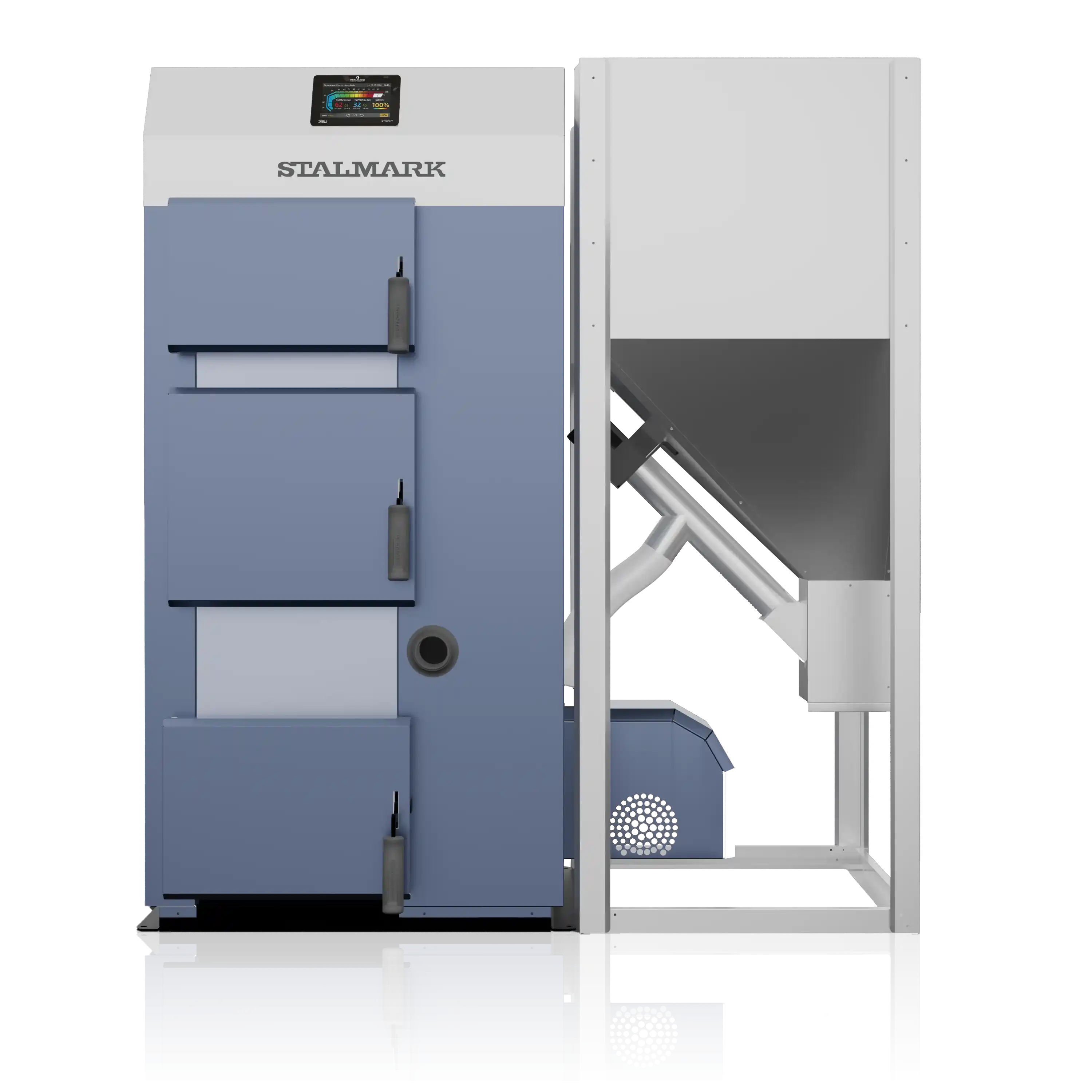

Pellet boiler
Hydro Vegas
Convenient heating, without unnecessary expenses
The Hydro Vegas is an innovative, dual-function boiler that provides heat for the central heating system and domestic hot water. Thanks to the flow-through copper coil, it does not need a pump or an additional DHW tank, which saves money and reduces failure rates compared to traditional systems. In addition, the larger capacity of the boiler acts as a heat buffer, which effectively supports its efficiency. An important component of the Hydro Vegas boiler is our proprietary Stalmark burner, equipped with a self-cleaning grate and firing function, which ensures stable and efficient operation. The hygienically approved copper DHW coil eliminates the risk of bacteria such as Legionella, ensuring clean domestic water.
The boiler has particulate emissions of less than 20mg/m3 of flue gas, thanks to which the boiler can receive the highest possible subsidy under the "Clean Air" program.
See catalogAvailability of domestic water depending on the boiler output
Hydro Vegas
The coil provides a flow rate of 1.2 to 1.5 m3/h, which allows for a capacity of 49 to 61 kW. In practice, this means the availability of domestic water in the amount of:
10kW - from 105 to 160 liters
15kW - from 120 to 185 liters
20kW - from 125 to 195 liters
25kW - from 150 to 235 liters
30kW - from 165 to 260 liters
40kW - from 225 to 320 liters
The amount of prepared water depends on the boiler water temperature settings (lower threshold for boiler water at 60°C, upper threshold for boiler water at 70°C).
It takes about 30 minutes to fully heat the coil and prepare hot water from scratch. This means that even in the event of high hot water consumption, the system quickly recovers to full capacity, providing constant access to heated water.
Hydro Vegas
Advantages of the boiler
- GUARANTEE
- for the tightness of the exchanger 60 months
- STALMARK BURNER
- with self-cleaning grate and firing function
- HOT WATER COIL.
- thanks to its copper design, our coils eliminate the risk of bacteria formation, such as Legionella
- LIMITATION
- heat losses during storage and transmission of thermal energy relative to standard solutions
- SAVINGS
- space due to the lack of need to install a pump and a DHW tank.
- EFFECTIVENESS
- lower electricity consumption due to the lack of need for a pump to power the coil
Characteristics
Type of boiler: with feeder
Tank: 10-30kW - 200l, 40kW - 300l
Available capacities: 10kW, 15kW, 20kW, 25kW, 30kW, 40kW
5 emission class: 10kW, 15kW, 20kW, 25kW, 30kW, 40kW
Reduced dust emissions of less than 20mg: 10kW, 15kW, 20kW, 25kW, 30kW, 40kW
Ecodesign: 10kW, 15kW, 20kW, 25kW, 30kW, 40kW
Fuel Type: 6-8mm wood pellets
Energy efficiency: A+
Standard equipment:
- ST 978T controller supporting 5 pumps, 2 mixing valve actuators and 2 room controllers
- self-cleaning burner
- igniter
Equipment additionally paid:
- WIFI RS module
- room controller ST 281
- control of second mixing valve
Boiler data
Hydro Vegas
Move to read data
| Boiler POWER [kW] | Boiler HEATING AREA [m2] | MAX. HEATING AREA [m2] |
|---|---|---|
| 10 | 1.12 | up to 125 |
| 15 | 1.57 | up to 185 |
| 20 | 2.18 | up to 250 |
| 25 | 2.72 | up to 315 |
| 30 | 3.28 | up to 375 |
| 40 | 4.28 | up to 500 |
Boiler specifications
Hydro Vegas
Move to read data
| Parameter | unit | 10kW | 15kW | 20kW | 25kW | 30kW | 40kW |
| Nominal power | kW | 10 | 15 | 20 | 25 | 30 | 40 |
| Power Range | kW | 3.0-10 | 4.5-15 | 6.0-20 | 7.5-25 | 9.0-30 | 12.0-40 |
| Heating area | m2 | 1.12 | 1.57 | 2.18 | 2.72 | 3.28 | 4.28 |
| Area of heated rooms* | m2 | up to 125 | up to 185 | up to 250 | up to 315 | up to 375 | up to 500 |
| Max. permissible operating pressure | MPa | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 |
| Flue gas draught required | Pa | 10 | 15 | 20 | 25 | 25 | 25 |
| Disposable Bin Fuel Fill | l | 200 | 200 | 200 | 200 | 200 | 300 |
| Supply water temp [min/max] | °C | 60/80 | 60/80 | 60/80 | 60/80 | 60/80 | 60/80 |
| Min. return water temp. | °C | 55 | 55 | 55 | 55 | 55 | 55 |
| Boiler Weight | kg | 295 | 310 | 365 | 410 | 480 | 580 |
| Boiler Water Capacity | l | 125 | 145 | 175 | 215 | 235 | 295 |
| Minimum chimney height | m | 5.5 | 6 | 6 | 6 | 6 | 8 |
| Boiler efficiency | % | 90.4 | 90.9 | 91.3 | 91.4 | 91.5 | 91.8 |
| Flue Dimensions | ∅ or mm | 160 | 160 | 180 | 180 | 180 | 180 |
| Supply and Return Diameter (female threaded couplers) | in | 1" | 1" | 1" | 1" | 1" | 1" |
| Electric heater socket diameter | in | 6/4" | 6/4" | 6/4" | 6/4" | 6/4" | 6/4" |
| Electrical Power Supply | V/Hz/A | 230/50/2 | 230/50/2 | 230/50/2 | 230/50/2 | 230/50/2 | 230/50/2 |
| Energy Efficiency Class | - | A+ | A+ | A+ | A+ | A+ | A+ |
| 5 class | - | yes | yes | yes | yes | yes | yes |
| Ecodesign | - | yes | yes | yes | yes | yes | yes |
Electricity consumption
Hydro Vegas
Move to read data
| Parameter | Unit | 10kW | 15kW | 20kW | 25kW | 30kW | 40kW |
|---|---|---|---|---|---|---|---|
| Nominal power | W | 26 | 53 | 39 | 46 | 53 | 67 |
| Minimum power | W | 14 | 40 | 16 | 18 | 20 | 24 |
| Standby mode | W | ~5 | ~5 | ~5 | ~5 | ~5 | ~5 |
| Maximum consumption | W | 455 | 455 | 455 | 455 | 455 | 455 |
Hydro Vegas
Hydro Vegas is a revolutionary boiler that stands out for its innovative approach to providing heat for the central heating system (C.O.) and supplying domestic hot water (DHW). Its dual-purpose design, based on a flow-through copper coil, eliminates the need for a pump or additional DHW tank, which not only saves costs but also reduces the risk of failure compared to traditional systems. With a 60-month warranty on exchanger integrity, Hydro Vegas is not only innovative, but also a robust and reliable solution for anyone looking for an efficient and environmentally friendly way to heat their home and provide hot water.
