Eco-pea boiler

Eko Vegas

Classics with a modern twist

Eko Vegas is a heating device designed to burn eco-pea. We created it with practically every home in mind, both small and quite large - think about it if your house is 110, 140, 180, 220, 260, 300 or even 700 m2! It will keep you warm in every room! Ecopowder boilers are very popular, and our customers are eager to use them.

See catalog
Stalmark Eko Vegas - kocioł na ekogroszek z automatycznym podajnikiem i innowacyjnym sterownikiem - przyszłościowe ogrzewanie bez użycia pieca

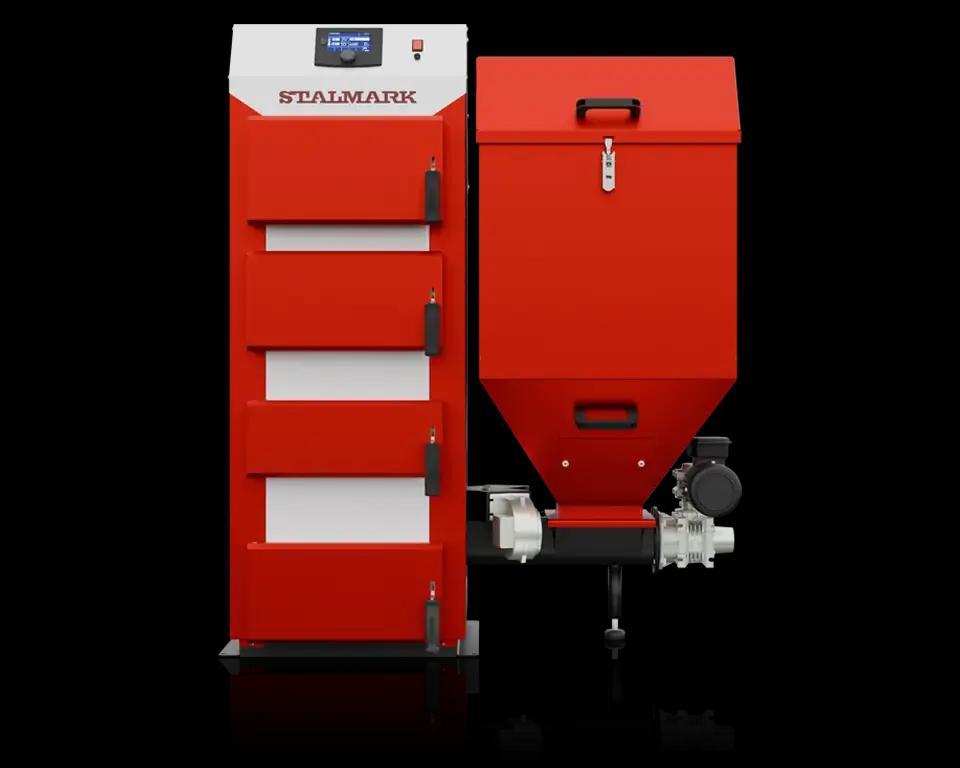

prawy przód kotła centralnego ogrzewania Stalmark Eko Vegas na ekogroszek z automatycznym podajnikiem - nowoczesny zamiennik pieca CO

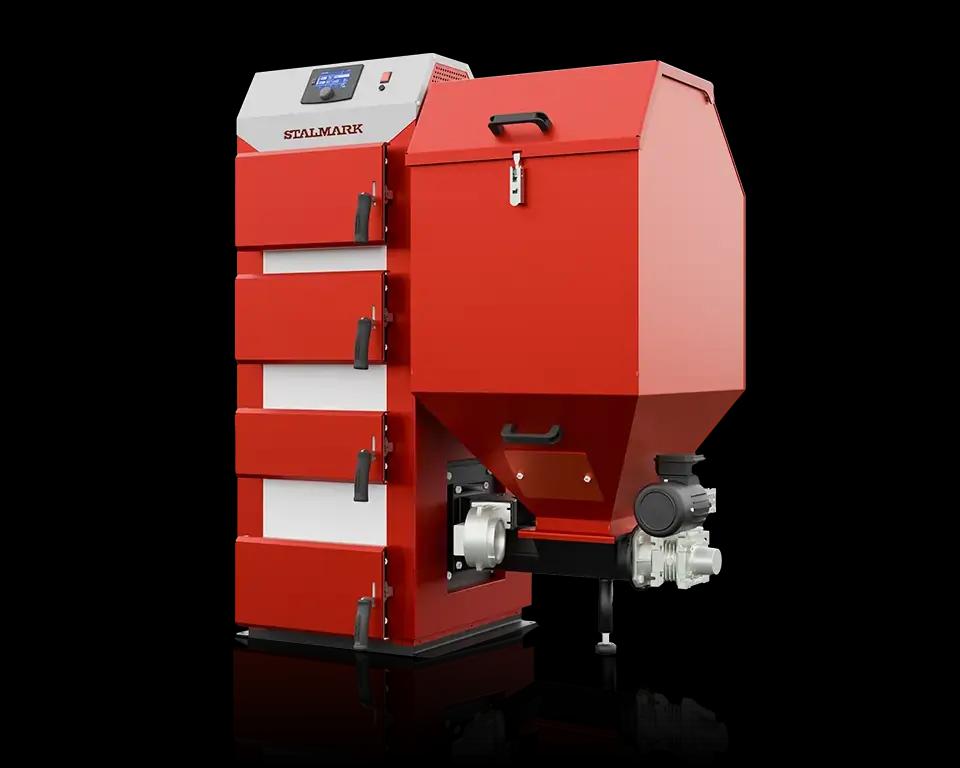

lewy przód kotła Stalmark Eko Vegas na ekogroszek z automatycznym podajnikiem

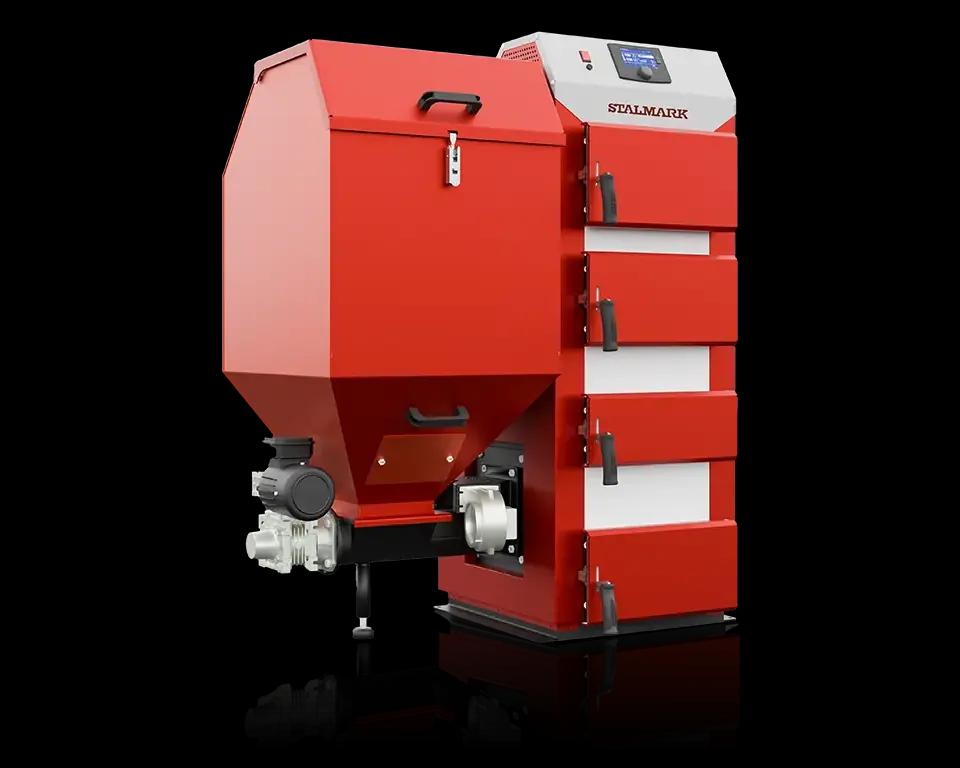

przód kotła centralnego ogrzewania Stalmark Eko Vegas na ekogroszek z automatycznym podajnikiem - innowacyjna alternatywa dla pieca
bok kotła Stalmark Eko Vegas na ekogroszek z automatycznym podajnikiem - sposób na ogrzewanie bez klasycznego pieca
góra kotła Stalmark Eko Vegas na ekogroszek z automatycznym podajnikiem - kotły zamiast pieców – co wybrać?

Eko Vegas
Advantages of the boiler

Warranty
for the tightness of the exchanger - 48 months
Resource
with the possibility of mounting on two sides
Cast iron
auger feeder and furnace
Doors
Prepared for mounting on two sides as standard
Reverse gear
feeder in case of fuel blockage
PID
in standard boiler equipment
Exchanger
boiler made of certified 6-8mm boiler steel
Footers
regulating the height of the boiler
Stalmark Eko Vegas - kocioł na ekogroszek z automatycznym podajnikiem i innowacyjnym sterownikiem - przyszłościowe ogrzewanie bez użycia pieca

Characteristics

Type of boiler: with feeder

Burner type: cast iron

Tank: 11 kW-14 kW-250L / 18 kW-265L / 22 kW-265L / 26kW-336L / 30kW-336L / 45kW-545L / 70kW-700L

Available capacities: 11 kW 14 kW 18 kW 22 kW 26 kW 30 kW 45 kW 70 kW

ECODESIGN: 11kW 14 kW 18 kW 22 kW 26 kW 30 kW 45 kW 70 kW

Fuel Type: eco-pea coal

Energy efficiency: B

Controller: ST 755 with PID

Guarantee: 4 years for exchanger tightness

Standard equipment:

  • ST 755 controller with PID
  • cleanout set
  • leveling feet

Additional equipment:

  • WIFI MODULE 5060
  • room controller ST 281
  • control of the second mixing valve ST 431
  • automatic igniter for power 18 kW, 22 kW
  • external weather sensor

Boiler data
Eko Vegas

Move to read data

BOILER POWER [kW]BOILER HEATING AREA [m2]MAX. HEATING AREA [m2]
182.1up to 225
222.5up to 275
262.8up to 325
303.4up to 375
454.8up to 560
707.3up to 875

Boiler specifications
Eko Vegas

Move to read data

Parameterunit11kW14kW18kW22kW26kW30kW45kW70kW
Nominal powerkW1114182226304570
Power RangekW3.3-114.2-145.4-186.6-227.8-269-3013.5-4532-70
Heating aream21.41.62.12.52.83.44.87.3
Area of heated rooms*m2up to 140up to 175up to 225up to 275up to 325up to 375up to 560up to 875
Max. permissible operating pressureMPa0.150.150.150.150.150.150.150.15
Flue gas draft requiredPa1515151515152530
Disposable Bin Fuel Filll250250265265336336545645
Supply water temp [min/max]°C55/9055/9055/9055/9055/9055/9055/9055/90
Boiler Weightkg3543804354705205757401130
Boiler Water Capacityl566580100117137180280
Minimum chimney heightm666677910
Boiler efficiency%94.393.492.492.792.393.789.490.8
Flue Dimensions∅ or mm160160180180180180220250
Supply and Return Diameter (female threaded couplers)in6/46/4"6/4"6/4"6/4"6/4"6/4"2"
Electrical Power SupplyV/Hz230 /50230 /50230 /50230 /50230 /50230 /50230 /50230 /50
Controller Power ConsumptionW1111111111111111
Fan Power ConsumptionW708080808080155230
Motor Power ConsumptionW120120120120120120180180
Energy Efficiency Class-A+A+A+A+A+A+A+A+
5 class-yesyesyesyesyesyesyesyes
Ecodesign-yesyesyesyesyesyesyesyes

Ask a representative about choosing the perfect boiler

Eko Vegas

The Eko Vegas eco-pea boiler is equipped with a horizontal boiler exchanger. This allows for easy cleaning of the device. The chimney flue outlet at an angle of 45 degrees makes it possible to install the chimney in a vertical or horizontal position.

The compact size of the eco-pea central heating boiler is a guarantee that it will fit even in a small boiler room or even in a basement.

Ecopowder is a modern solid fuel that is recommended for use in central heating, as it is high in calories and gives a lot of heat.

The eco-pea is made from high-quality coal with low sulfur content. It is milled to produce eco-pea grains of 5 to 25mm, sold in convenient packages. Eco-pea boilers are ecological, very efficient and ultimately save money!

We have supplied the Eko Vegas boiler with a convenient ST 755 controller with PID that manages the operation of the boiler. It allows you to operate four independent heating systems plus a mixing valve.

The eco-pea stove is a modern and economical heating solution.
